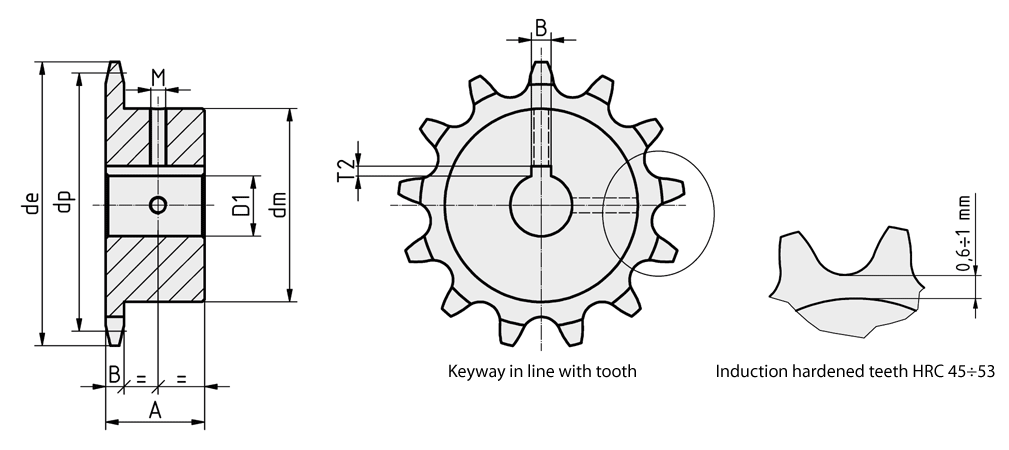

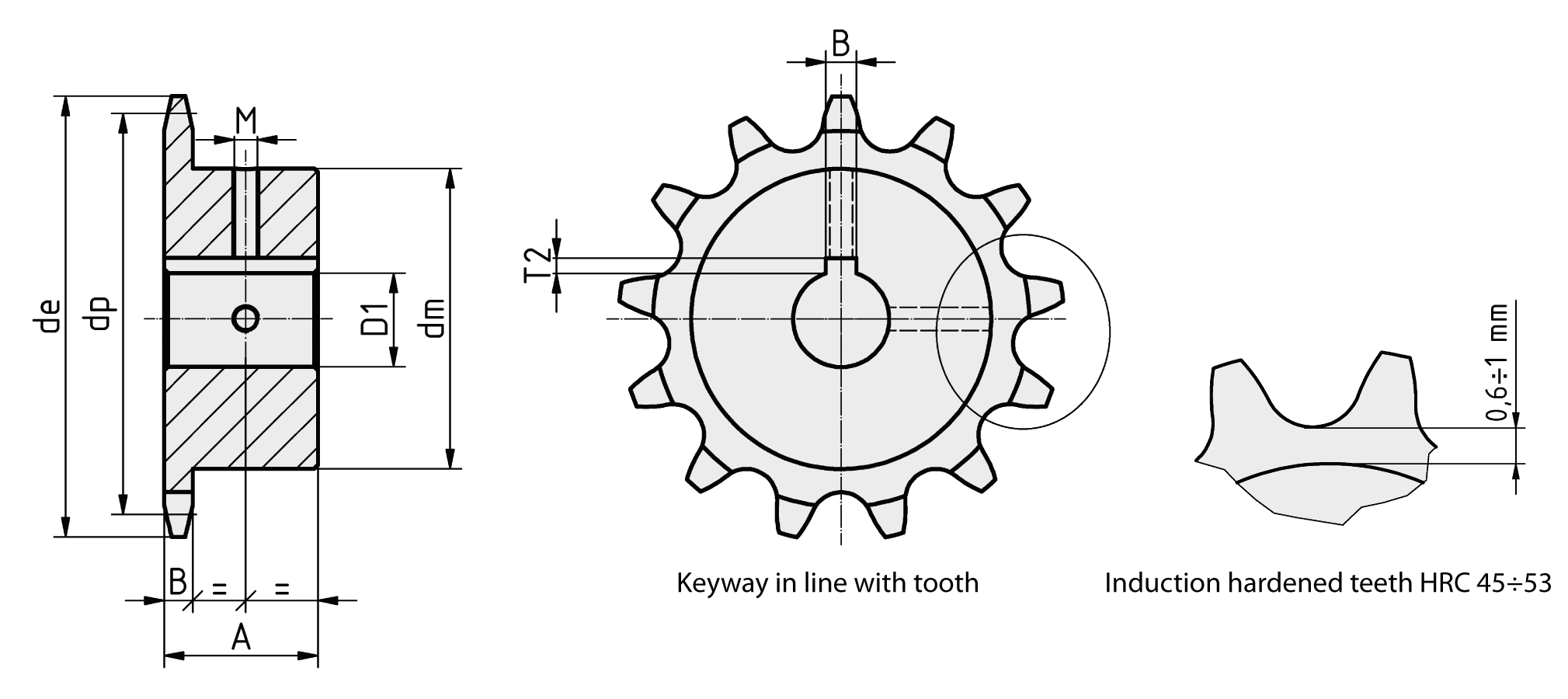

Finished sprockets with hardened teeth

06B-1 - Finished sprocket with hardened teeth

for roller chain to DIN 8187 ISO/R606

• Teeth number: 13 - 30
• Pitch (P): 9,525 mm
• Inner width (b₁): 5,72 mm
• Roller diameter (D): 6,35 mm
• Sprocket tooth width (B₁): 5,3 mm
• Raw material: steel C40/C45 hardened
• Catalogue sheet (PDF): 06B-1 - Finished sprocket with hardened teeth

08B-1 - Finished sprocket with hardened teeth

for roller chain to DIN 8187 ISO/R606

• Teeth number: 12 - 30
• Pitch (P): 12,7 mm
• Inner width (b₁): 7,75 mm
• Roller diameter (D): 8,51 mm
• Sprocket tooth width (B₁): 7,2 mm
• Raw material: steel C40/C45 hardened
• Catalogue sheet (PDF): 08B-1 - Finished sprocket with hardened teeth

10B-1 - Finished sprocket with hardened teeth

for roller chain to DIN 8187 ISO/R606

• Teeth number: 13 - 25
• Pitch (P): 9,525 mm
• Inner width (b₁): 5,72 mm
• Roller diameter (D): 6,35 mm
• Sprocket tooth width (B₁): 9,1 mm
• Raw material: steel C40/C45 hardened
• Catalogue sheet (PDF): 10B-1 - Finished sprocket with hardened teeth

12B-1 - Finished sprocket with hardened teeth

for roller chain to DIN 8187 ISO/R606

• Teeth number: 12 - 21
• Pitch (P): 19,05 mm
• Inner width (b₁): 11,68 mm
• Roller diameter (D): 12,07 mm
• Sprocket tooth width (B₁): 11,1 mm
• Raw material: steel C40/C45 hardened
• Catalogue sheet (PDF): 12B-1 - Finished sprocket with hardened teeth

16B-1 - Finished sprocket with hardened teeth

for roller chain to DIN 8187 ISO/R606

• Teeth number: 12 - 25
• Pitch (P): 25,4 mm
• Inner width (b₁): 17,02 mm
• Roller diameter (D): 15,88 mm
• Sprocket tooth width (B₁): 16,2 mm
• Raw material: steel C40/C45 hardened
• Catalogue sheet (PDF): 16B-1 - Finished sprocket with hardened teeth
