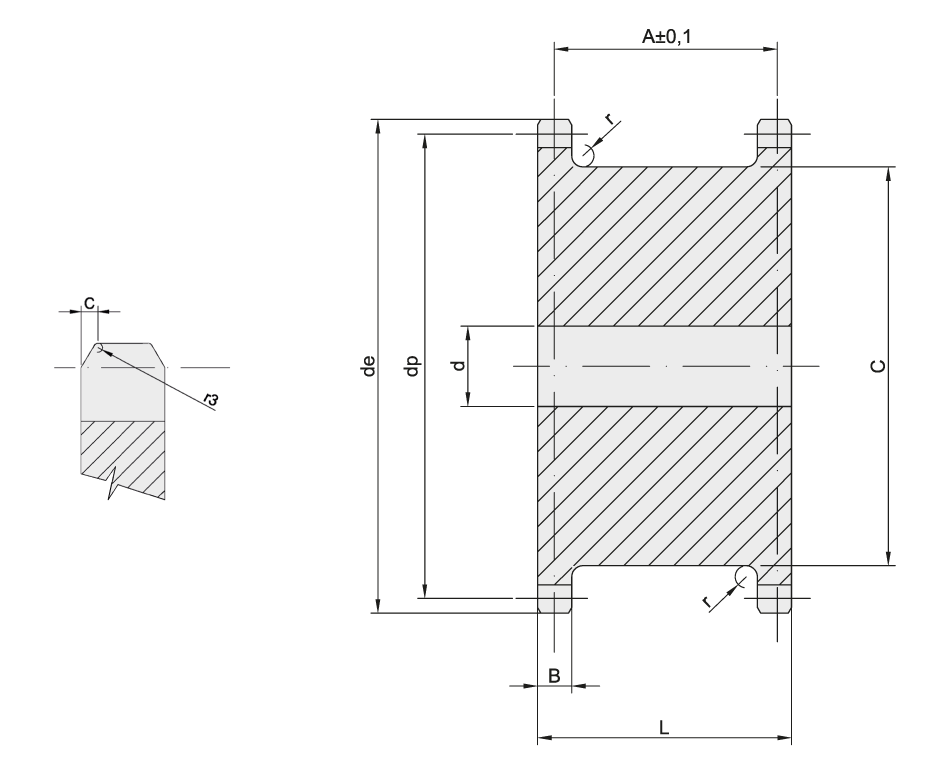

Plate wheels for two simple chains

06B-1 - Plate wheel for two simple chains

to DIN 8187 ISO/R606

• Teeth number: 13 - 25
• Pitch (P): 9,525 mm
• Inner width (b₁): 5,72 mm
• Roller diameter (D): 6,35 mm
• Tooth radius (r₃): 10 mm
• Radius width (C): 1,0 mm

• Raw material: steel C40/C45 / St52-3
• Chain type: 3/8” x 7/32”, R. 6.35
• Catalogue sheet (PDF): Plate wheel for two simple chains

08B-1 - Plate wheel for two simple chains

to DIN 8187 ISO/R606

• Teeth number: 13 - 25
• Pitch (P): 12,7 mm
• Inner width (b₁): 7,75 mm
• Roller diameter (D): 8,51 mm
• Tooth radius (r₃): 13 mm
• Radius width (C): 1,3 mm
• Raw material: steel C40/C45 / St52-3
• Chain type: 1/2” x 5/16”, R. 8.51
• Catalogue sheet (PDF): Plate wheel for two simple chains

10B-1 - Plate wheel for two simple chains

to DIN 8187 ISO/R606

• Teeth number: 13 - 25
• Pitch (P): 15,875 mm
• Inner width (b₁): 9,65 mm
• Roller diameter (D): 10,16 mm
• Tooth radius (r₃): 16 mm
• Radius width (C): 1,6 mm
• Raw material: steel C40/C45 / St52-3
• Chain type: 5/8” x 3/8”, R. 10.16
• Catalogue sheet (PDF): Plate wheel for two simple chains

12B-1 - Plate wheel for two simple chains

to DIN 8187 ISO/R606

• Teeth number: 13 - 25
• Pitch (P): 19,05 mm
• Inner width (b₁): 11,68 mm
• Roller diameter (D): 12,07 mm
• Tooth radius (r₃): 19 mm
• Radius width (C): 2,0 mm
• Raw material: steel C40/C45 / St52-3
• Chain type: 3/4” x 7/16”, R. 12.07
• Catalogue sheet (PDF): Plate wheel for two simple chains

16B-1 - Plate wheel for two simple chains

to DIN 8187 ISO/R606

• Teeth number: 13 - 25
• Pitch (P): 25,4 mm
• Inner width (b₁): 17,02 mm
• Roller diameter (D): 15,88 mm
• Tooth radius (r₃): 26 mm
• Radius width (C): 2,5 mm
• Raw material: steel C40/C45 / St52-3
• Chain type: 1” x 17,02, R. 15.88
• Catalogue sheet (PDF): Plate wheel for two simple chains
